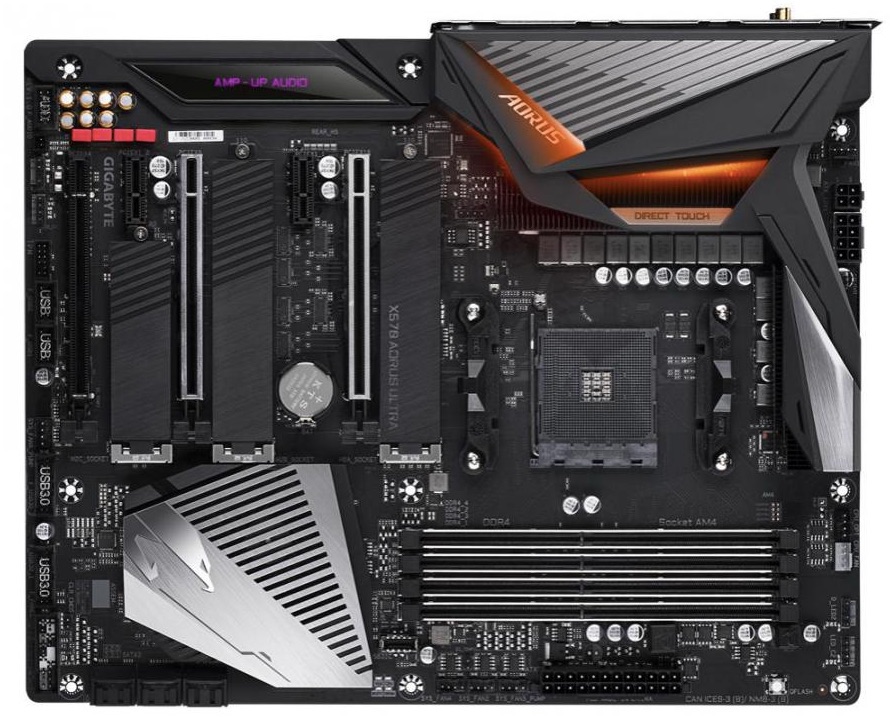

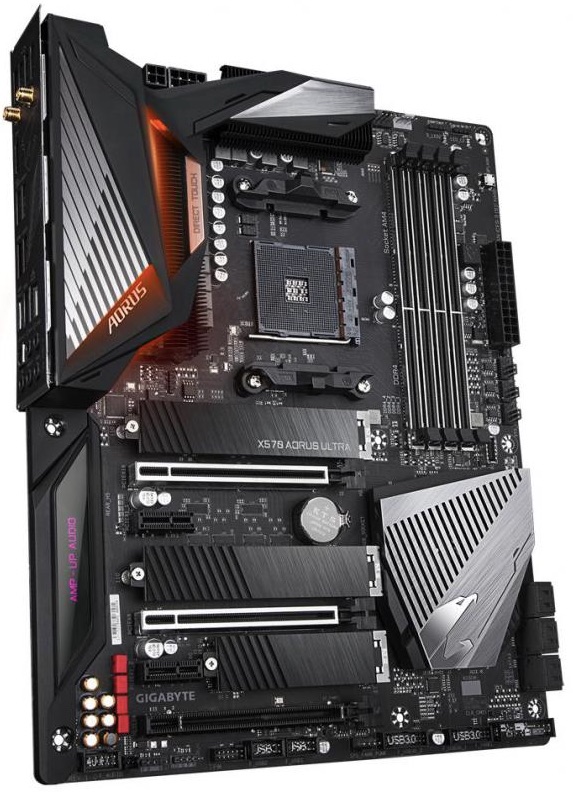

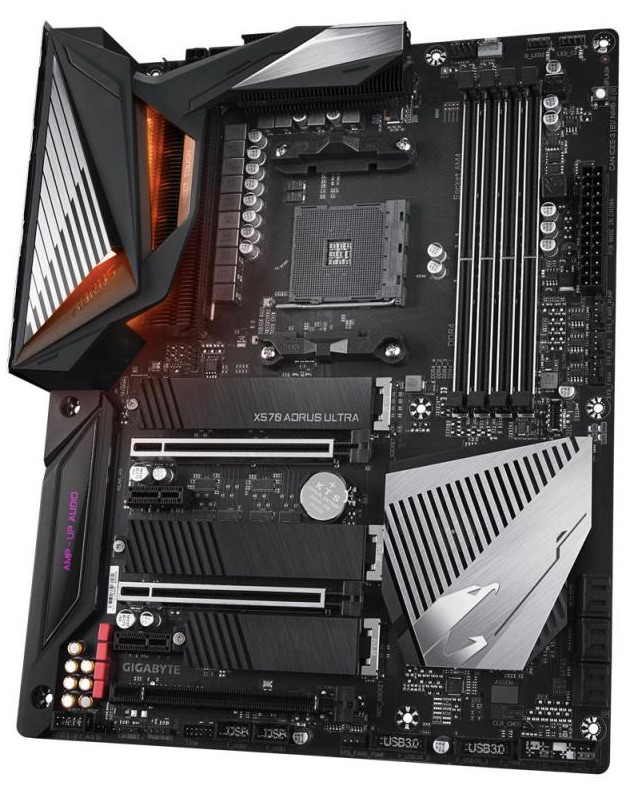

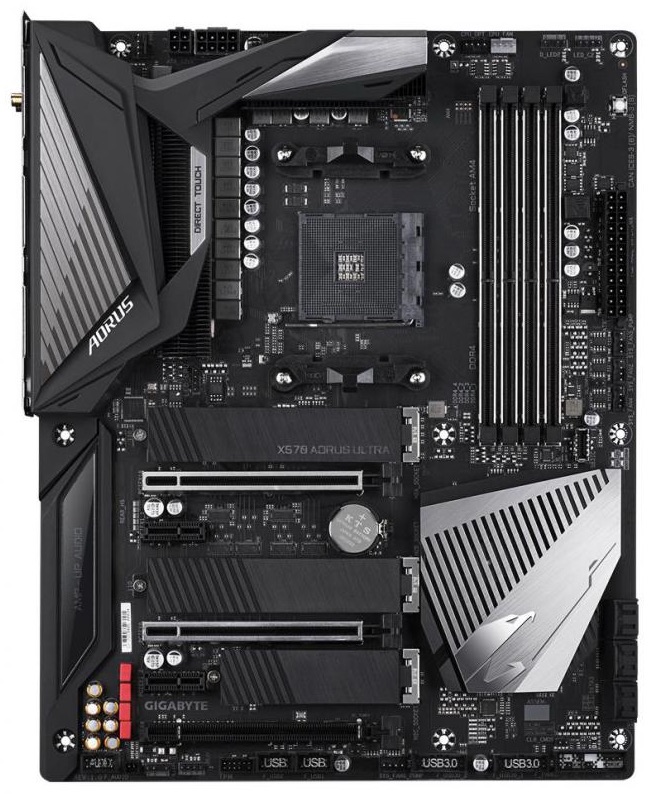

Gigabyte X570 AORUS ULTRA AM4 ATX Motherboard

[Model# GA-X570-AORUS-ULTRA]

AMD X570 AORUS Motherboard with 12+2 Phase IR Digital VRM, Fins-Array Heatsink & Direct Touch Heatpipe, Triple PCIe 4.0 M.2 with Thermal Guards, Intel® WiFi 6 802.11ax, Intel® GbE LAN with cFosSpeed, USB Type-C, RGB Fusion 2.0

• Supports AMD Ryzen™ 5000 Series / 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors
• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
• 12+2 Phases IR Digital VRM Solution with Power Stage
• Advanced Thermal Design with Fins-Array Heatsink and Direct Touch Heatpipe
• Triple Ultra-Fast NVMe PCIe 4.0/3.0 M.2 with Triple Thermal Guards
• Intel^® WiFi 6 802.11ax 2T2R & BT 5
• ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with WIMA Audio Capacitors
• Intel^® Gigabit LAN with cFosSpeed Internet Accelerator Networking
• RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips
• Smart Fan 5 features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Front & Rear USB 3.1 Gen2 Type-C™ Header & HDMI 2.0 support
• Adopts a high quality ball bearing fan which guarantees 60,000 working hours.
• Integrated I/O Shield Armor
• Q-Flash Plus update BIOS Without Installing CPU, Memory and Graphics card
