NVIDIA® GeForce® GTX® VR Ready
Simultaneous Multi-Projection
NVIDIA® Ansel
NVIDIA® G-SYNC™
NVIDIA® SLI® w/ HB Bridge Support
NVIDIA® GameStream™
NVIDIA® GPU Boost™ 3.0
Microsoft® DirectX® 12
Vulkan API
Open GL 4.5 Support
PCIe 3.0
Microsoft DirectX 12
OS Certification – Windows 7-10, Linux, Free85BSDx86
Display Connectors – DP1.4, HDMI 2.0b, DL-DVI
HDCP 2.2
Latest Display Interface Support DP 1.4
All photos, specifications, contents are used for reference only and are subject to change without notice. Actual products in different countries varies and are best to consult your local distributor / importer for confirmation.
GPU Engine Specs:
CUDA Cores 1920
Base Clock (MHz) 1518
Boost Clock (MHz) 1708
Memory Specs:
Memory Speed 8Gbps
Standard Memory Config 8GB
Memory Interface Width 256-bit GDDR5
Memory Bandwidth (GB/sec) 256
Feature Support:
OpenGL 4.5
Bus Support PCI-E 3.0
Certified for Windows 7-10, Linux, Free85BSDx86
Supported Technologies Microsoft® DirectX® 12
Virtual Reality Ready Yes
SLI Options
Display Support:
Multi Monitor 4 Displays
Maximum Digital Resolution 4096×2160
Maximum VGA Resolution 2560×1600
HDCP Yes
HDMI Yes

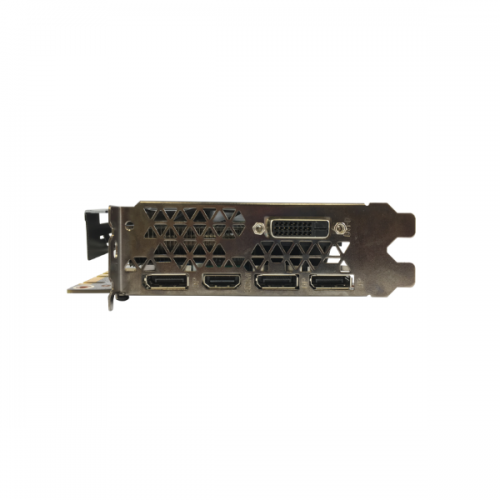

Standard Display Connectors DVI-D, HDMI, 3x DP 1.4
Audio Input for HDMI Internal
Power Specs:
Maximum Graphics Card Power (W) 150W
Minimum System Power Requirement (W) 500W
Supplementary Power Connectors 1x6pin、1x8pin
Model:
Product Code 70NSH6DHL4XE
UPC Code 4895147123684
Dimensions:
Dimensions(with Bracket): 296 x 144 x 43 mm
Dimensions(without Bracket): 282 x 128 x 43 mm
